Tw85 191219001 131-8687 0r-7094 471111-5001s 1318687 Water-Cooled Turbocharger for Cat Ship with 3406e 3408e Engine
Wuxi Booshiwheel Power Technology Co., Ltd.- Engine Type：Diesel
- Type：Mechanical Turbocharger System
- Body Material：Iron
- Certification：TS16949
- ETS Component：Turbine
- ETS Type：Axialflow
Base Info
- Model NO.：TW85
- Brand：Booshiwheel
- Part No.：471111-5001s
- Previous Version：471111-0001, 471111-1, 471111-9001
- OEM：131-8687, 1318687, 0r-7094, 0r7094
- Chra：449530-0016
- Displacement：14600CCM 6cylinders
- Kw：450,550 HP
- Bearing Housing：449072-0001
- Transport Package：Carton
- Specification：40kg
- Trademark：Booshiwheel
- Origin：China
- HS Code：8414909090
- Production Capacity：5000PCS Per Month
Description
Basic Info.
Model NO. TW85 Brand Booshiwheel Part No. 471111-5001s Previous Version 471111-0001, 471111-1, 471111-9001 OEM 131-8687, 1318687, 0r-7094, 0r7094 Chra 449530-0016 Displacement 14600CCM 6cylinders Kw 450/550 HP Bearing Housing 449072-0001 Transport Package Carton Specification 40kg Trademark Booshiwheel Origin China HS Code 8414909090 Production Capacity 5000PCS Per MonthProduct Description
TW85 191219001 131-8687 0r-7094 471111-5001s 1318687 Turbocharger for Cat Ship with 3406e 3408e Engine
Product description
| Part Number | 471111-5001S |
| Previous Version | 471111-0001, 471111-1, 471111-9001 |
| OE number | 131-8687, 1318687, 0R-7094, 0R7094 |
| Description | Ship, Marine |
| CHRA | 449530-0016 (449530-5016S, 1318688, 0R7094) $1,945.05 |
| Turbo Model | UTW8501 |
| Engine | 3408E |
| Engine Marine | 3406E |
| Engine Manufacturer | Caterpillar |
| Displacement | 14600 ccm, 6 Cylinders |
| KW | 450/550 HP |
| Fuel | Diesel |
| RPM | 2300 |
| S/N | 9WR00001-UP |
| Bearing Housing | 449072-0001 (Oil Cooled) $252.10 NEW IN STOCK |
| Turbine Wheel | 449587-0001 (Ind. 111.45 mm, Exd. 97.1 mm, 11 Blades) $242.30 NEW IN STOCK |
| Comp. Wheel | 441831-0017 |
| Back plate | 442732-0005 $98.93 NEW IN STOCK |
| Heat shield Number | 409794-0002 (407657-0008)(4P6527) $65.01 NEW IN STOCK |
| Repair Kit | 711494-0001 (468267-0010)(176-4259, 125-5375)(1101085750) $188.40 NEW IN STOCK |
| Turbine Housing (Water Cooled) | 409339-0204 (1318689, 23506458) $2007.35 NEW IN STOCK |
| Compressor Cover | 443892-0031 (1318690) $608.97 |
| Turbine Housing AR | 1.03 |
| Plug-Cup (Standard) | 3B0645 |
| Plug-Cup (Standard) | 4N0932 |
| PLUG-CUP (Optional) | 3P1896 |
| Plug-Cup | 1006816 |
| Gasket (turbine inlet) | 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835) $13.20 |
| Gasket oil inlet | 129119 (201049, 210019-0000, 409266-0003, 409266-0004) $4.22 |
| Gasket (oil outlet) | 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) |
Application
Cat Ship with 3406E Engine

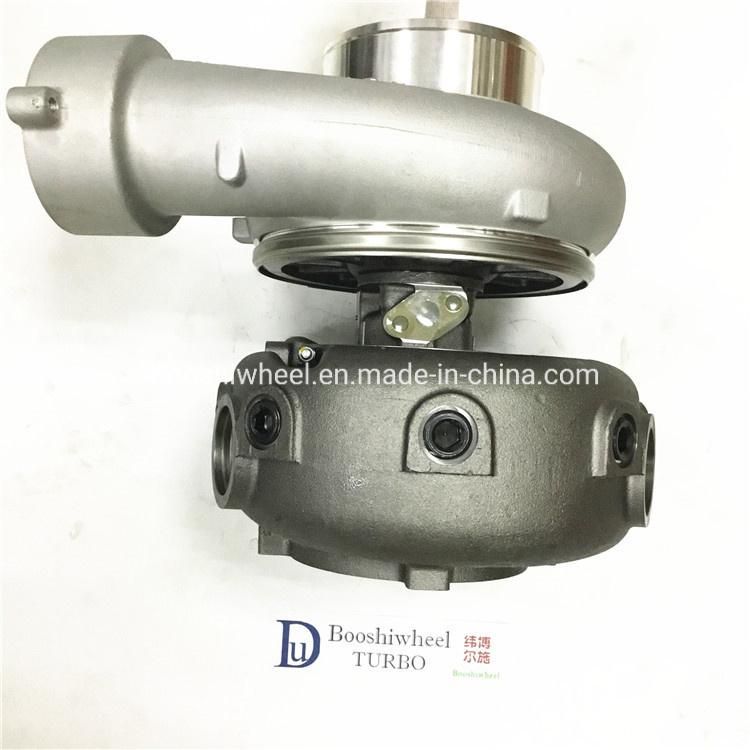

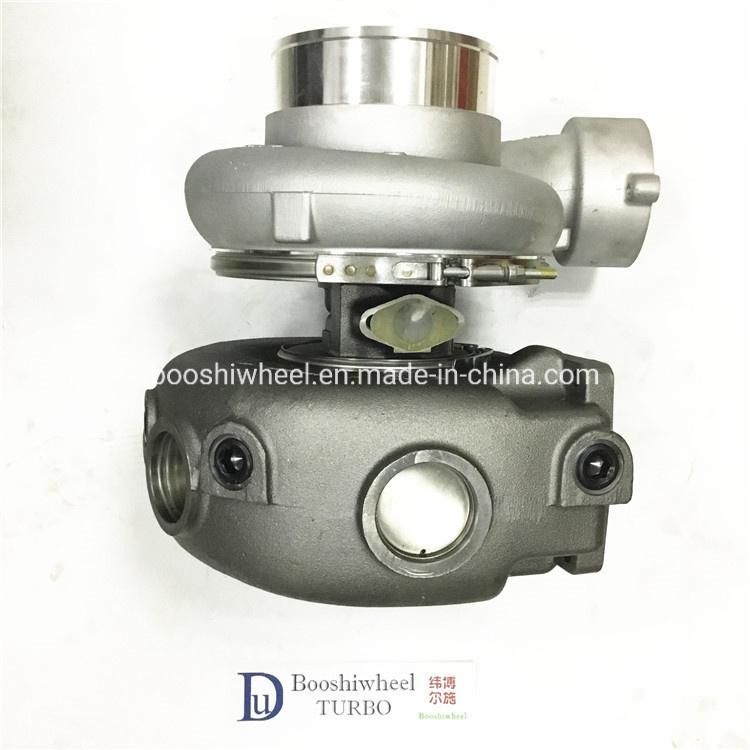

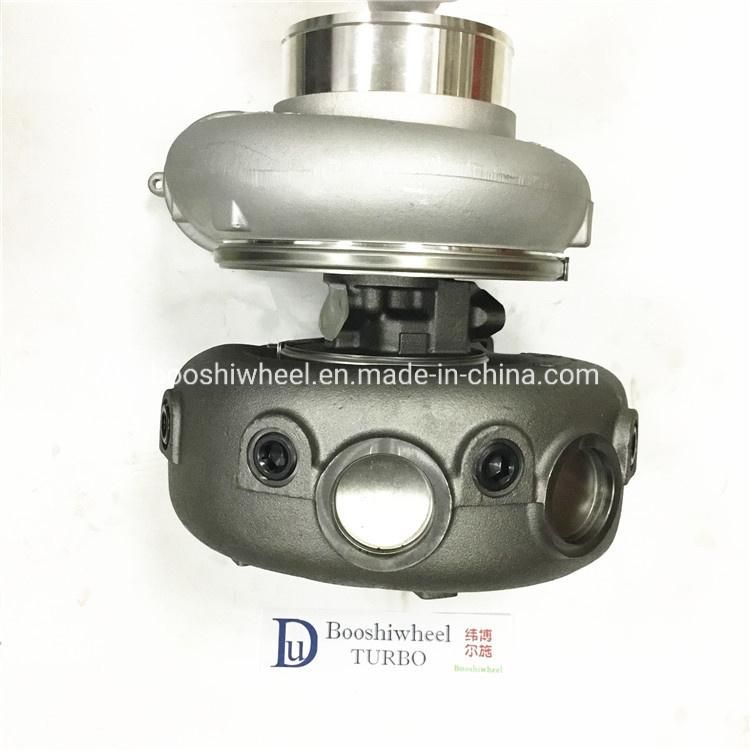

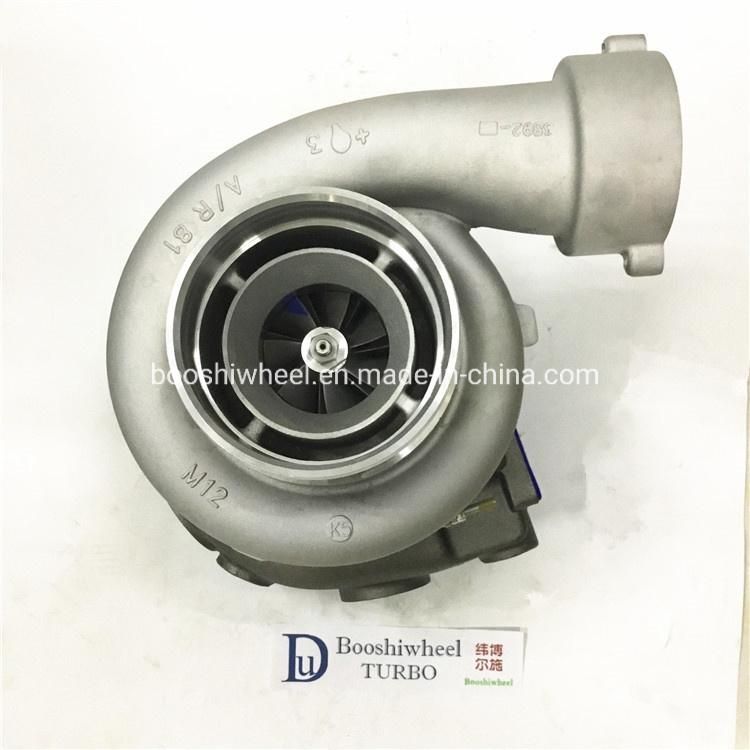

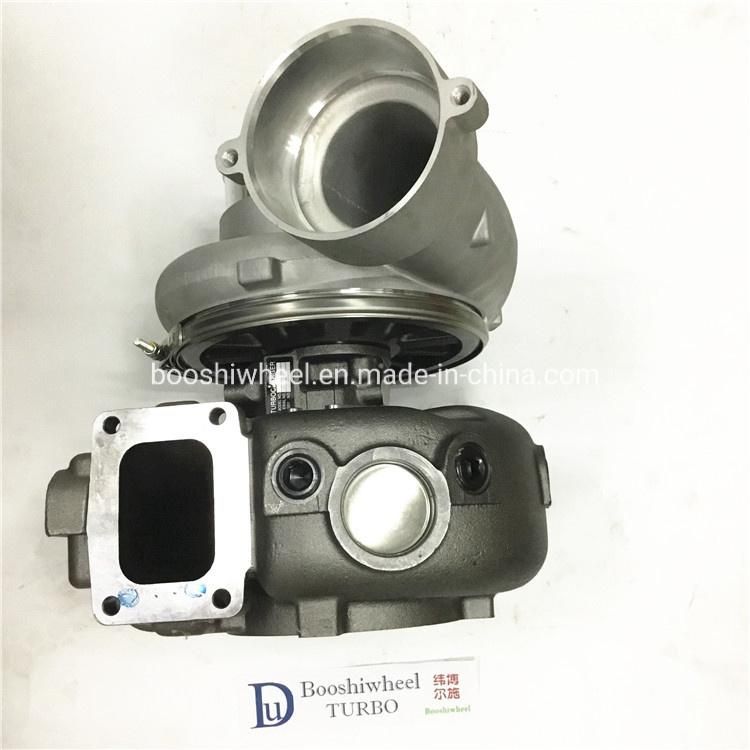

Product show

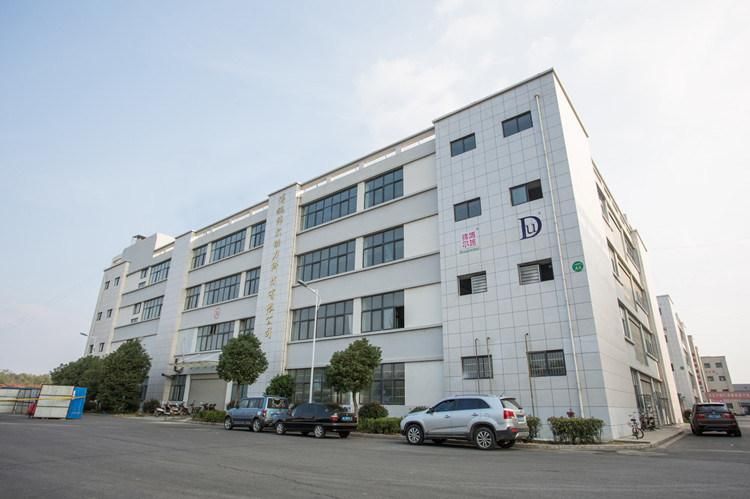

Factory

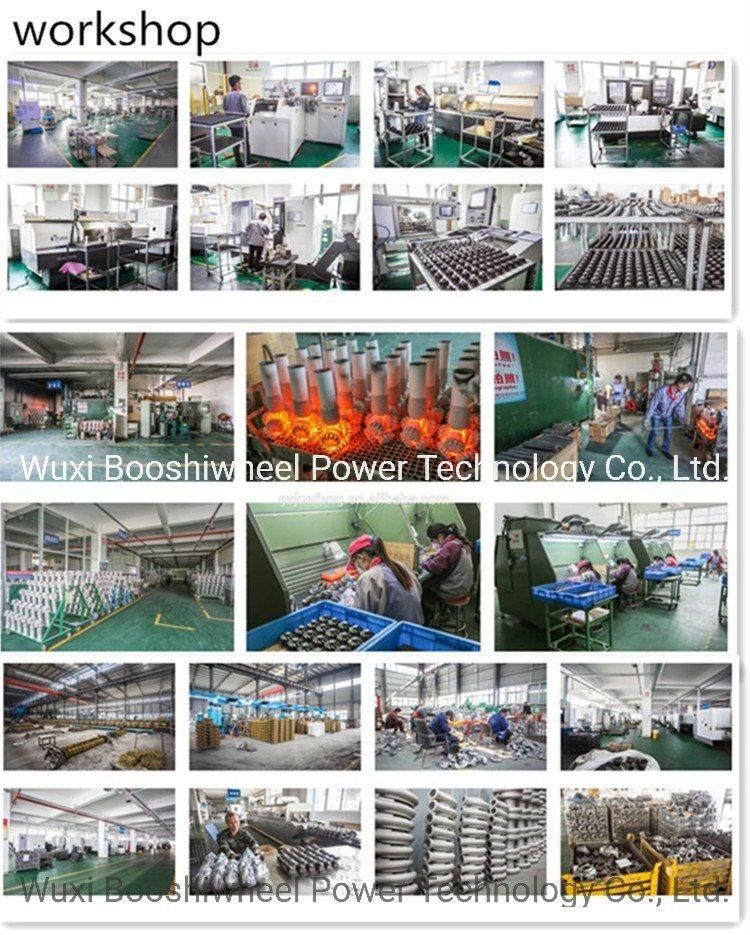

1.Wuxi Booshiwheel Power Technology Co,Ltd. ,specialized in manufacturing turbochargers . Our factory was established in 2003 in Wuxi City .
We built a newfactory in He nan province on 2018 year. Import CVE Electron Beam Welding from UK, Studer CNC grinding machine from Switzerland,
Okuma CNC machine from Japan, Schenck balancing machine from Germany.
2.The company has a wide range of products ,including Turbocharger for all types of vehicles, Turbine housing, Compressor housing ,Nozzle ring ,Cartridge,
Actuator ect.

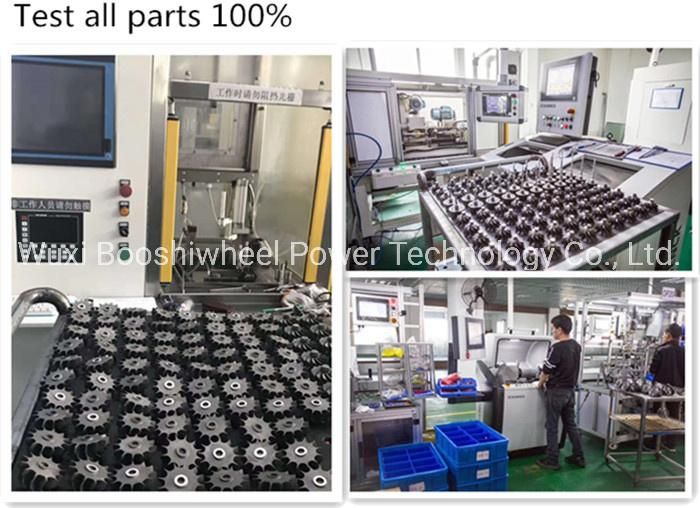

3.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest
testing facilities.

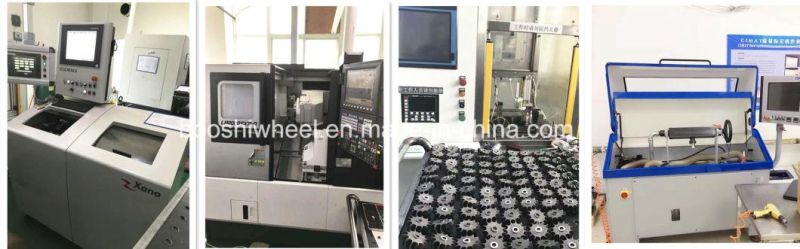

CVE Electron Beam Welding from UK,Studer CNC grinding machine from Switzerland,
Okuma CNC machine from Japan, Schenck balancing machine from Germany.
1.Min.order ?
1 pcs.
2.Delivery time?
Within 7 days.
3.Transport way?
By air or by ship.
4.Payment way?
West union or Company account.TT 100% before sent.
