• Model NO.：RHB31
• ETS Type：Axialflow
• Application：Suzuki
• Brand：Suzuki Jimny
• Car Fitment：Suzuki Jimny
• Model：993CCM 23HP
• Year：2000-2002
• Material：Aluminum Alloy and Iron
• Condition：100% Brand New
• Color：Black and Grey
• Fuel：Gasoline or Diesel
• Place of Origin：Anhui, China
• Transport Package：Neutral or Customized
• Specification：YA1, F6AT, Isuzu 4TNA
• Trademark：Neutral or customized brand
• Origin：China Mainland
• HS Code：8414803090
• Production Capacity：80000PCS,Year

ModelRHB31Interchangeable numbersVA110069, VB110069, VC110069, VD110069, VE110069, VF110069, VI110069, VJ110069, VH110069, VG110069 OE Number 13900-62D51, 1390062D51, 1390062D50, 13900-62D50 V-SPEC VZ21, VZ21 940202276BOEM numberRHB31 VZ21-13900-62D51 13900-62D50 13900-80710 13900-80711 VE110069 VJ110069 VJ11029EngineYA1, F6AT  21R707-0011-G1Engine  manufacturerSuzukiFuelDiesel or gasolineApplicationSmall engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HP for Suzuki ALTO Works with YA1, F6AT Engine Murray,
Power/Generac with 21R707-0011-G1 Engine Suzuki Jimny Swift Alto SX4 LIANA Grand Vitara mini cars; Suzuki Alto Works Briggs
Stratton Murray Briggs Power Generac MultiQuip; Suzuki Motorcycle QUAD RHINO and dune buggy modify; Suzuki Jimny Alto 500-660cc engine
Part Number VE110069
Previous Version VA110069, VB110069, VC110069, VD110069, VE110069, VF110069, VI110069, VJ110069, VH110069, VG110069 OE Number 13900-62D51, 1390062D51, 1390062D50, 13900-62D50 V-SPEC VZ21, VZ21 940202276B

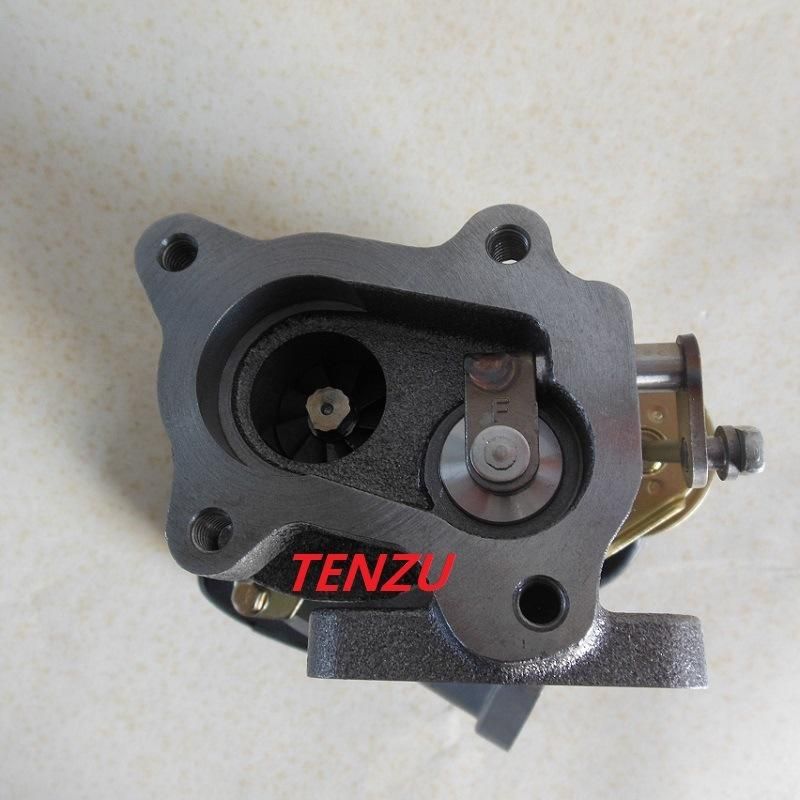

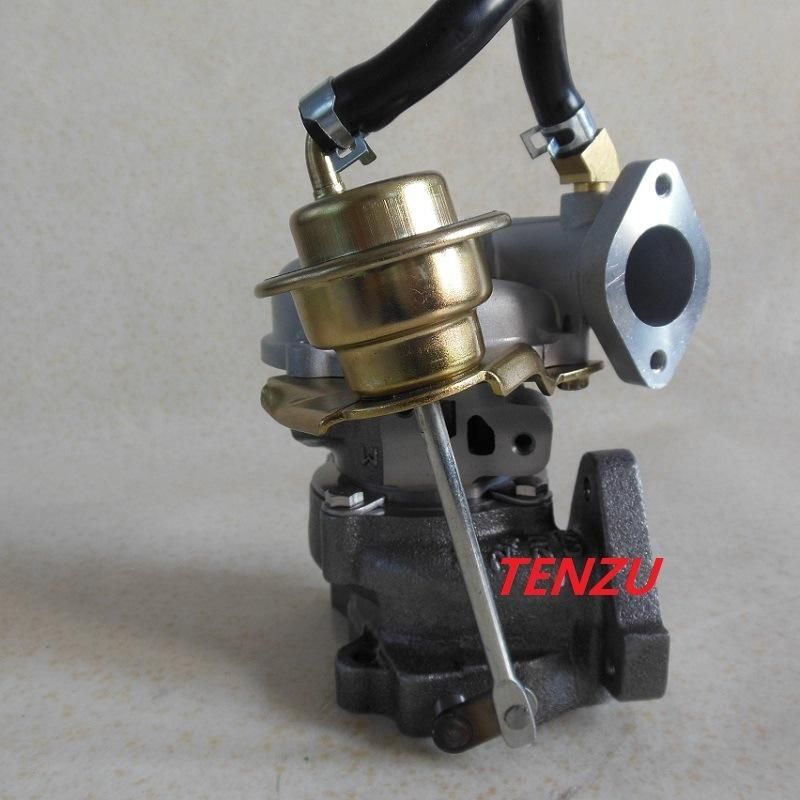

Description Suzuki ALTO Works, Briggs and Stratton, Murray, Briggs Power/Generac, Multi-quip CHRA (1000040001) Turbo Model RHB31CW-30004CP7NRBRDL245AZ
Engine YA1, F6AT, Isuzu 4TNA
Engine Manufacturer Suzuki Displacement 993 ccm KW 23 HP
Angle α (compressor housing) 340°
Angle β (turbine housing) 39°
Bearing Housing (Water Cooled)(1900011010)
Turbine Wheel (Ind. 26.5 mm, Exd. 35.6 mm, Trm 3.09, 12 Blades)(1100011013) Comp. Wheel (Ind. 23.8 mm, Exd. 35.5 mm, Trm 2.89, 4+4 Blades, Superback)(1200016391B) NEW IN STOCK
Back plate (1800016001) NEW IN STOCK Heat shield Number (2030016043) NEW IN STOCK Repair Kit NB139922 (509T-536)(5000080021) Actuator (2061016005)
Turbine Housing AR 7
Manufacturer Tenzu
Application Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HP for Suzuki ALTO Works with YA1, F6AT Engine Murray, Power/Generac with 21R707-0011-G1 Engine Suzuki Jimny Swift Alto SX4 LIANA Grand Vitara mini cars; Suzuki Alto Works Briggs Stratton Murray Briggs Power Generac MultiQuip; Suzuki Motorcycle QUAD RHINO and dune buggy modify; Suzuki Jimny Alto 500-660cc engine Remarks*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo. Some logos and some technical parameters of the website may be slightly inaccurate. For specific product parameters and specifications, please consult the customer service specialist Any questions or concerns, please feel free to email or call us.
