• Model NO.：GT-024
• Specification：Rohs
• Trademark：shangtao
• Origin：Shanghai, China
• HS Code：8516800000
• Production Capacity：500000 PCS Per Year

Basic Info.

Model NO. GT-024 Specification Rohs Trademark shangtao Origin Shanghai, China HS Code 8516800000 Production Capacity 500000 PCS Per Year

Product Description

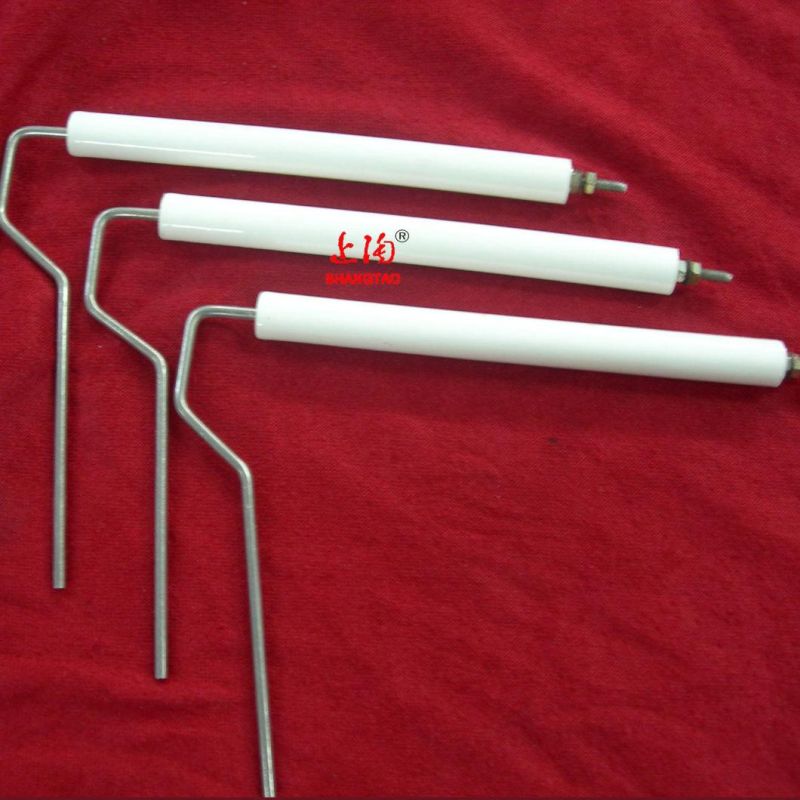

Ceramic Spark Plug Ignition Electrode

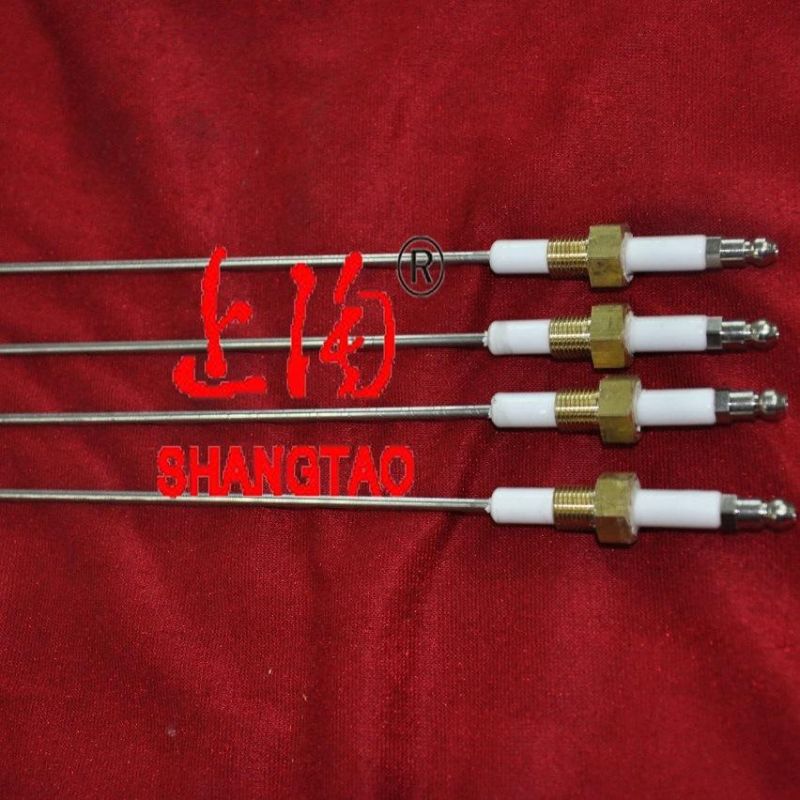

The ceramic spark ignition rods are widely used in ignition devise of combustion machine, boiler, with strong points such as sensitive ignition, durable, strong ageing resistance, high temperature resistance, corrosion resistance, high dielectric strength. Standard interface thread is M14× 1.25, M16 × 1.5, M18 × 1.5, G1/2. Ignition electrode needle is Φ 2.6 Φ 3Φ 5 and Φ 3.5. The electrode needle length can be produced according to customer requirements, the ceramic parts of electrode needle can be assembled according to the different requirements of customers.

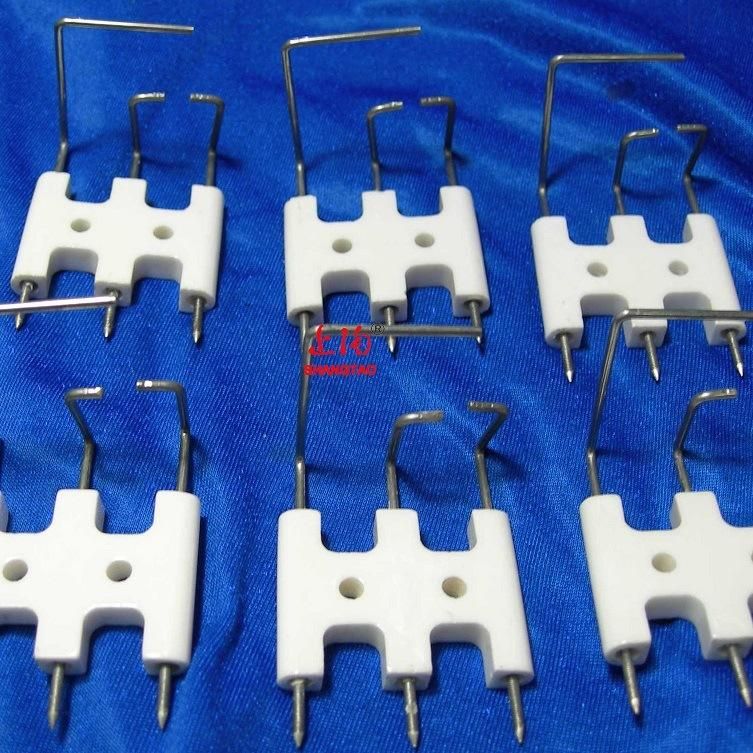

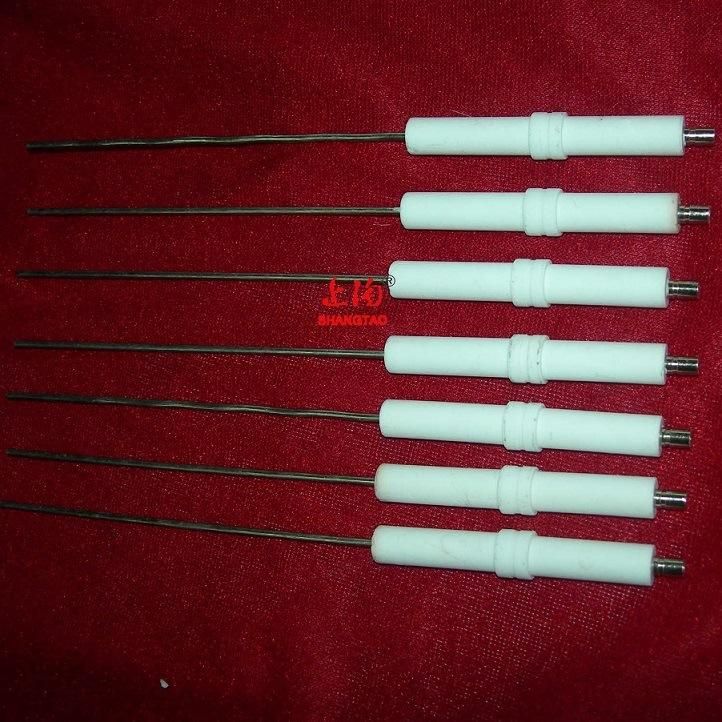

Ceramic ignition/ induction probe

Characteristics: Aging and high temperature resistance, perfect insulation, high strength, good stability, suitable for different environment.
Technical parameter: 0.5 to 1.5mm in diameter, length of 50- 80mm, insulation strength>15KV/mm.
Applications: All kinds of pipeline gas, liquefied petroleum gas, natural gas and electrical water heater, stove, gas oven ect with similar purpose.

Material	85 Al2o3	90 Al2o3	95 Al2o3	99 Al2o3
Al2o3	85%	90%	93%	99.30%
Fe2o3	≤ 1.0	≤ 0.5	≤ 0.5	≤ 0.3
Desnsity: g / cm3	3.4	3.5	3.6	3.85
Vickers Hardness	≥ 8.6	≥ 8.8	9	9
Water Absorption:%	≤ 0.2	≤ 0.1	≤ 0.085	≤ 0.01
Refractoriness:°C	1580 °C	1600 °C	1650 °C	1800°C
Flexural Strength:Mpa	180	200	240	280
Wear Rate( at room temperature,  erosion, 100 grinding)%	≤ 3	≤ 2.5	≤ 1	≤ 0.5

Sillimatin 60 Type C 530, Alsint 99.7 Type C 799 and Pythagoras Type C 610, all complying with DIN VDE 0335.
The main applications are in the area of thermal processes. Protection tubes, insulators, radiant tubes, support tubes for electric heaters, beams, profiles, incineration aids and special fabrications.
The Impervious Materials are:
Alsint(Re-crystallised Alumina) is rated to 1700oC
Pythagoras(Aluminous Porcelain) is rated to 1400oC
The Porous Material is:
Sillimantin 60 and is rated at 1350oC
Sillimantin has better thermal shock resistance and is used mainly in furnace tubes, however can be used as an outer protection sheath if thermal shock is critical.
